Compared to the S25 model, the FOKARCI S35 delivers significant improvements in both flow rate and pressure performance, enabling it to meet pumping requirements under heavier operational loads. Furthermore, the S35 is capable of handling highly viscous media—with viscosities reaching up to 6,000 cP—making it suitable for a wider range of complex operating environments.

The FOKARCI S35 diaphragm pump is ideally suited for various applications:
1. Pumping toxic media
2. Pumping strong acid and strong alkali solutions
3. Pumping imported fruit juices and beverages
Note: Our warehouse maintains a ready stock of wear parts and repair kits for the FOKARCI S35 pump (including diaphragms, seals, and complete spare parts sets), ensuring that maintenance costs remain manageable.

Technical Specifications:
1. Flow Rate Range: 0.4 – 119 L/min
2. Max. Outlet Pressure: 103 kg
3. Max. Inlet Pressure: 17 kg
4. Max. Operating Temperature: For detailed information regarding proper model selection when operating temperatures range between 71°C and 121°C, please consult the factory.
5. Max. Solid Particle Size: 800 μm
6. Inlet Size: 2-1/2 inch BSPT
7. Outlet Size: 1-1/4 inch BSPT
8. Shaft Diameter: 50.8 mm
9. Shaft Rotation Direction: Bi-directional
10. Bearings: Tapered Roller Bearings
11. Weight: Metal Pump Head: 136 kg
12. Pump Head Material Options:

• 316L Stainless Steel
• 2205 / 2507 Duplex Stainless Steel
• Hastelloy C-276

13. Diaphragm Material Options:

• Teflon (PTFE)

14. Valve Assembly Material Options:

• Hastelloy C-276
• 316L Stainless Steel
• 17-4 PH Stainless Steel
• 2205 / 2507 Duplex Stainless Steel

Application Cases:

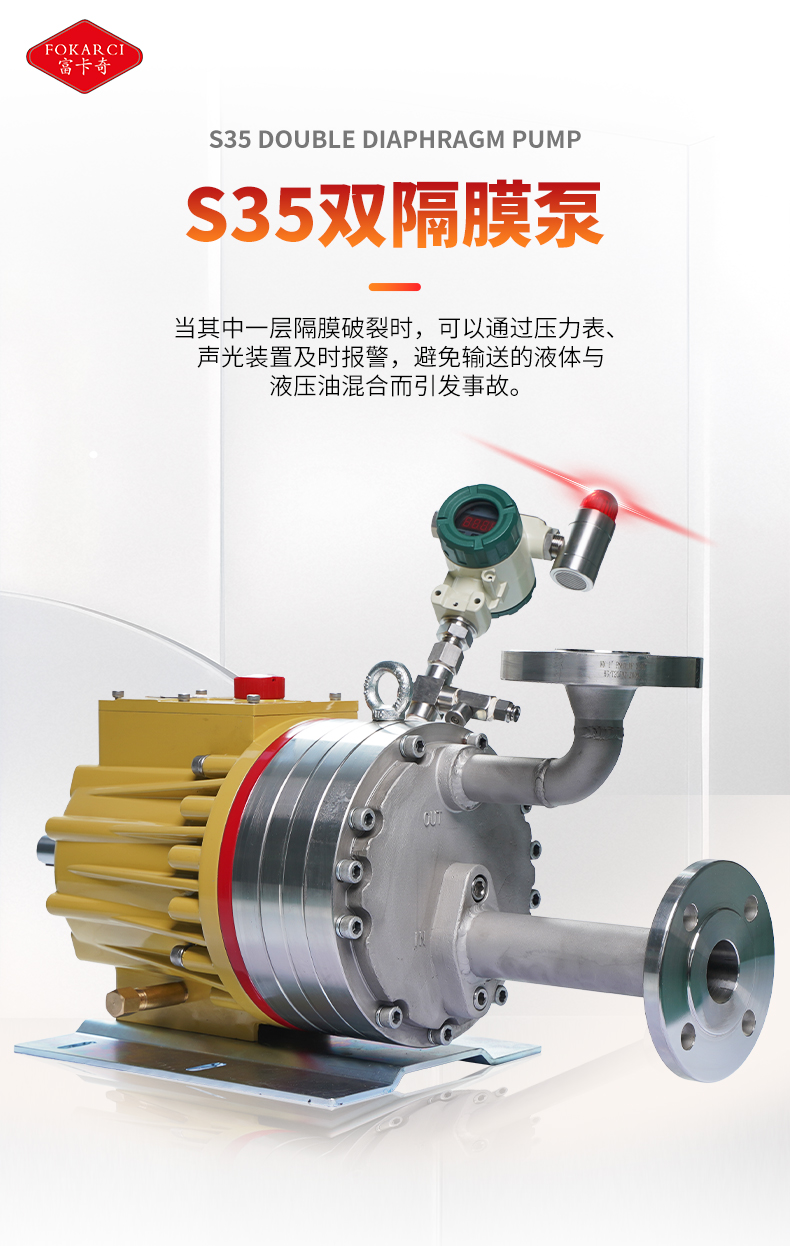

FOKARCI S35 High-Pressure Pump: Conveying toxic media

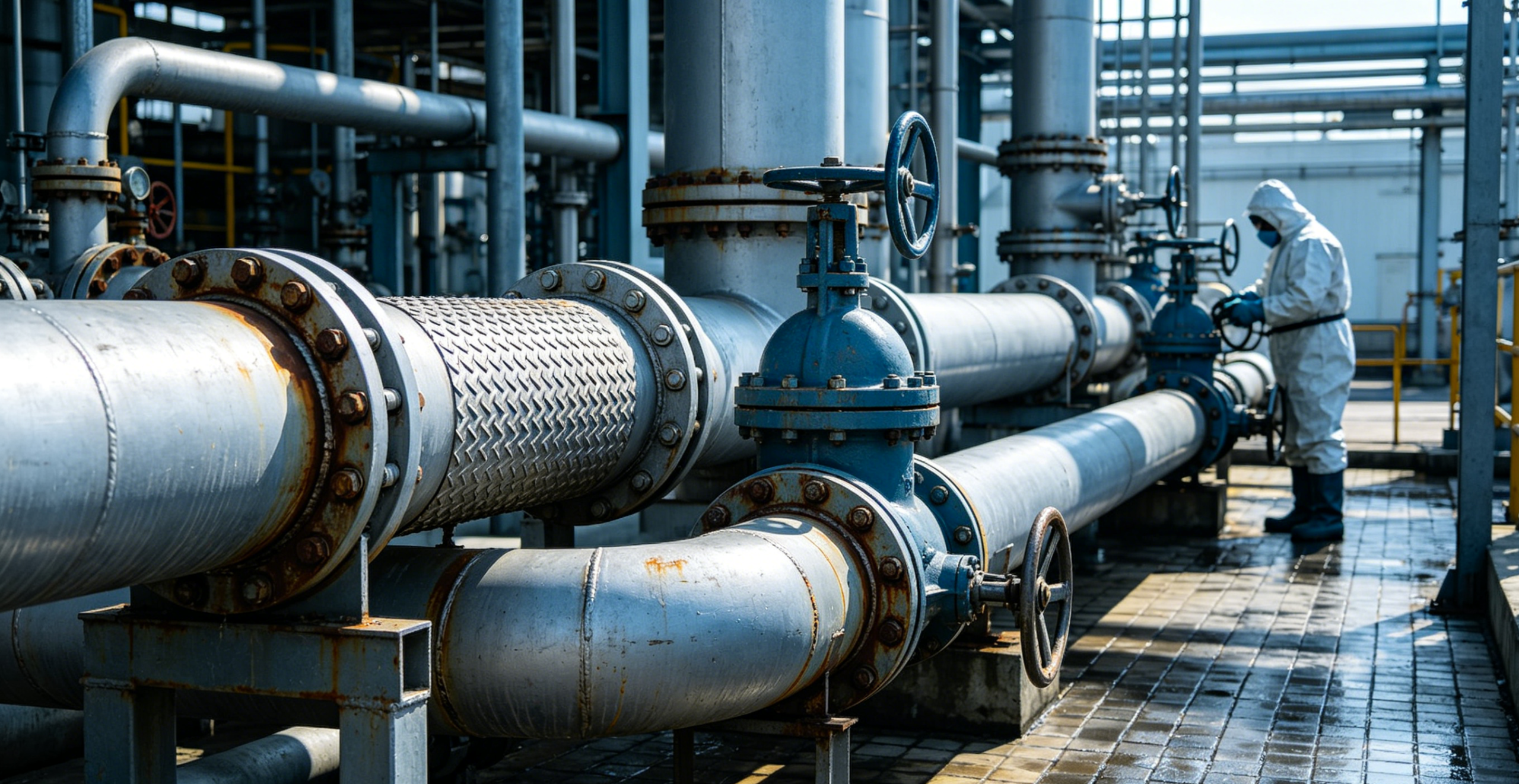

FOKARCI S35: Conveying strong acid and strong alkali solutions

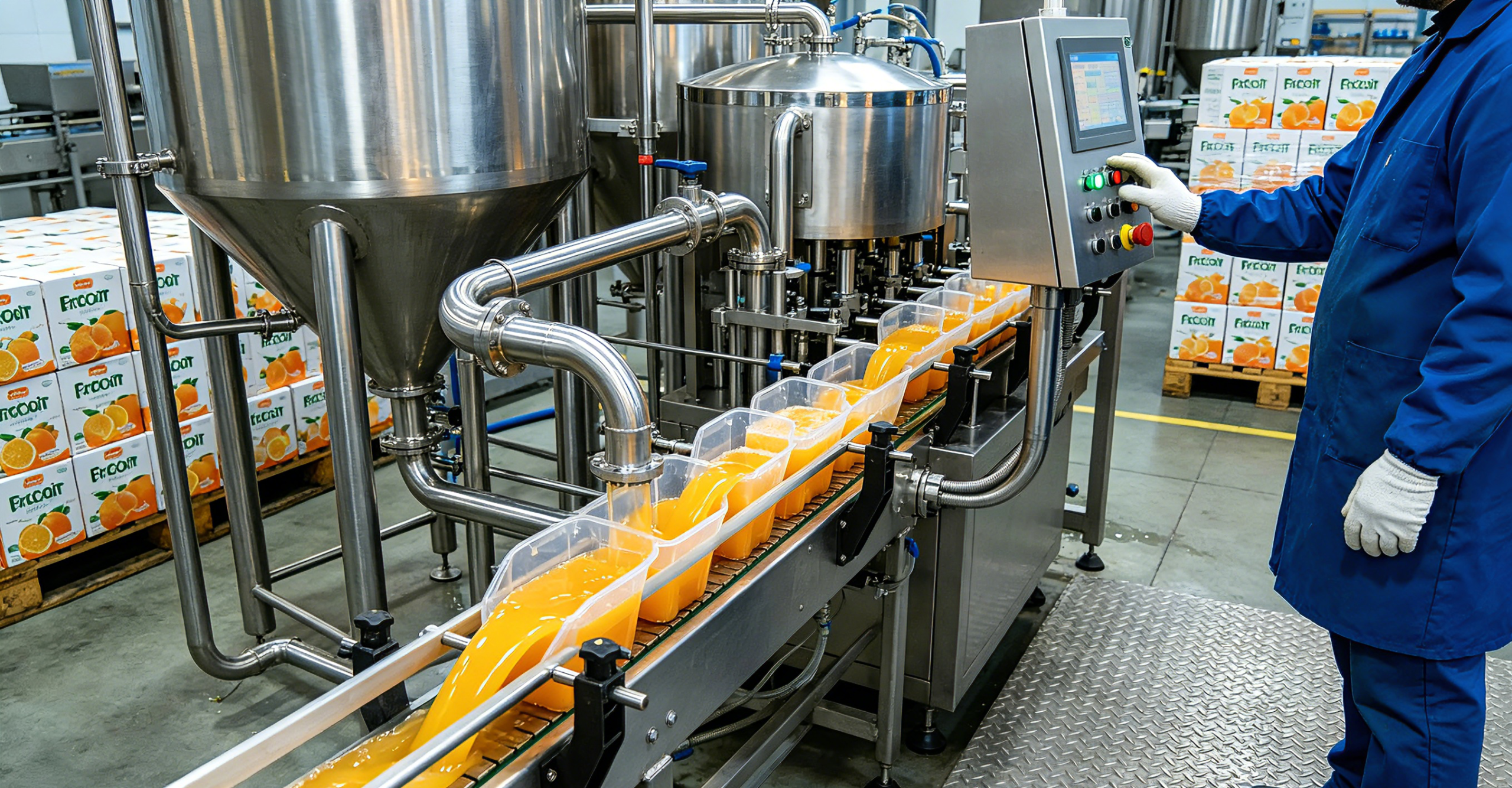

FOKARCI S35: Conveying imported fruit juices and beverages
