The FOKARCI GY03 diaphragm pump is suitable for various operating conditions:

1. It can pump fluids containing solid particles, abrasive, corrosive, and high viscosity.

2. Pulsation-free design, eliminating the need for an additional pulsation damper (if extremely stringent pulsation requirements are needed, please add a pulsation damper).

3. Compact, packing-free seal structure, zero shaft seal leakage point, significantly reducing pump body size; lightweight body design allows for seamless integration into mobile equipment systems.

Note: We maintain a stock of FOKARCI GY03 pump wear parts and repair kits (diaphragms, seals, and a full set of spare parts), keeping maintenance costs manageable.

Technical Specifications:

1. Flow range: 0.37~11.7L/min

2. Maximum outlet pressure: 83kg

3. Maximum inlet pressure: 17kg

4. Maximum operating temperature: For detailed information on correct model selection when the operating temperature is between 71℃ and 121℃, please consult the factory.

5. Maximum solid size: 200μm

6. Inlet size: 1/2 inch BSPT

7. Outlet size: 3/8 inch BSPT

8. Shaft diameter: 22.2mm (7/8 inch)

9. Shaft rotation direction: Double-direction

10. Bearing: Tapered roller bearing

11. Weight: Metal pump head: 12.8kg; Non-metal pump head: 8.8kg

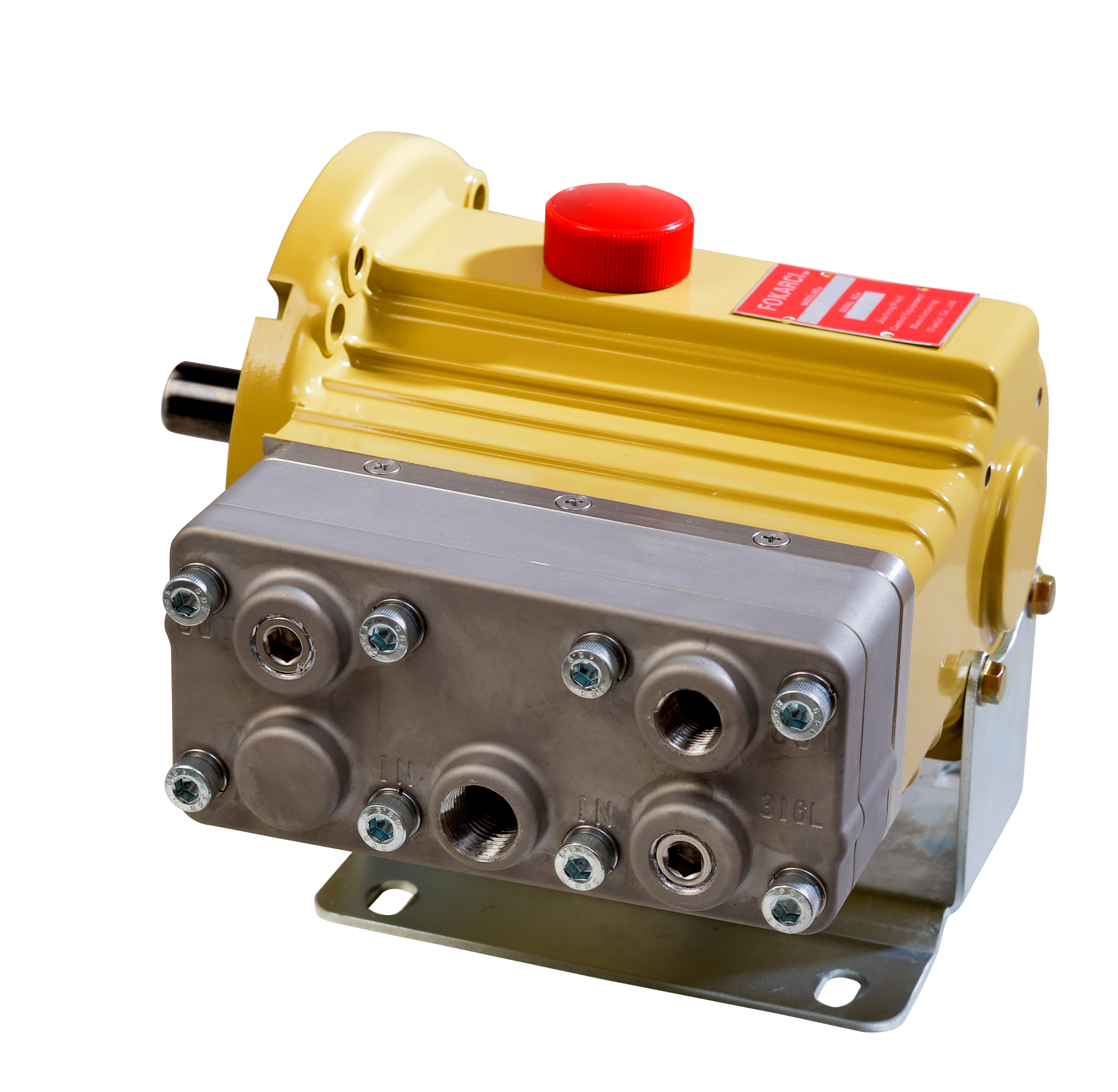

12. Pump head material options:

• 316L stainless steel
• 2205, 2507 duplex stainless steel

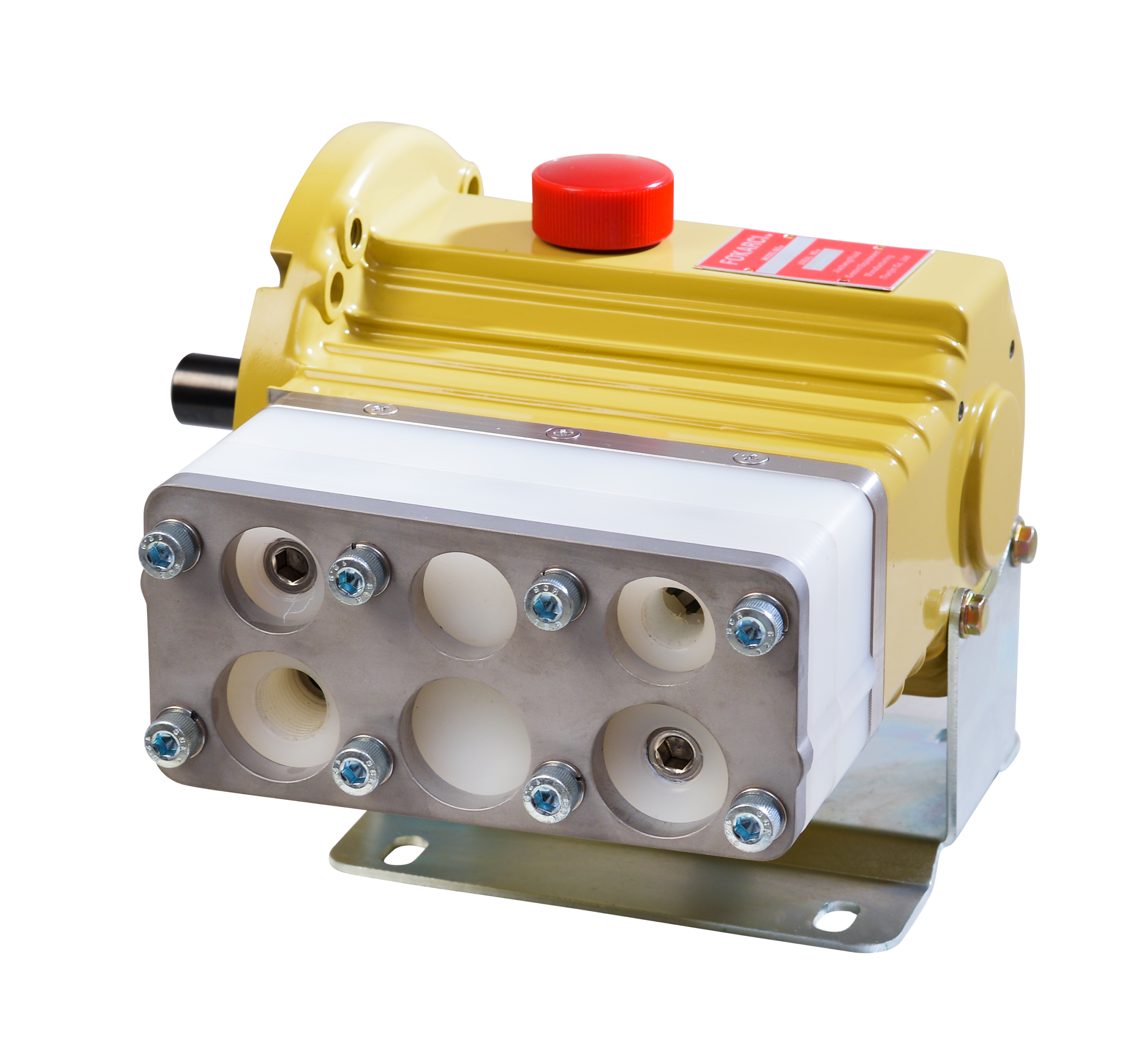

• PVDF
• Hastelloy C-276

13. Diaphragm material options:

• Fluororubber (FKM)
• Teflon (PTFE)

14. Valve manifold material options:

• Hastelloy C-276
• 316L stainless steel
• 17-4 PH stainless steel
• 2205, 2507 duplex stainless steel

Application Cases:

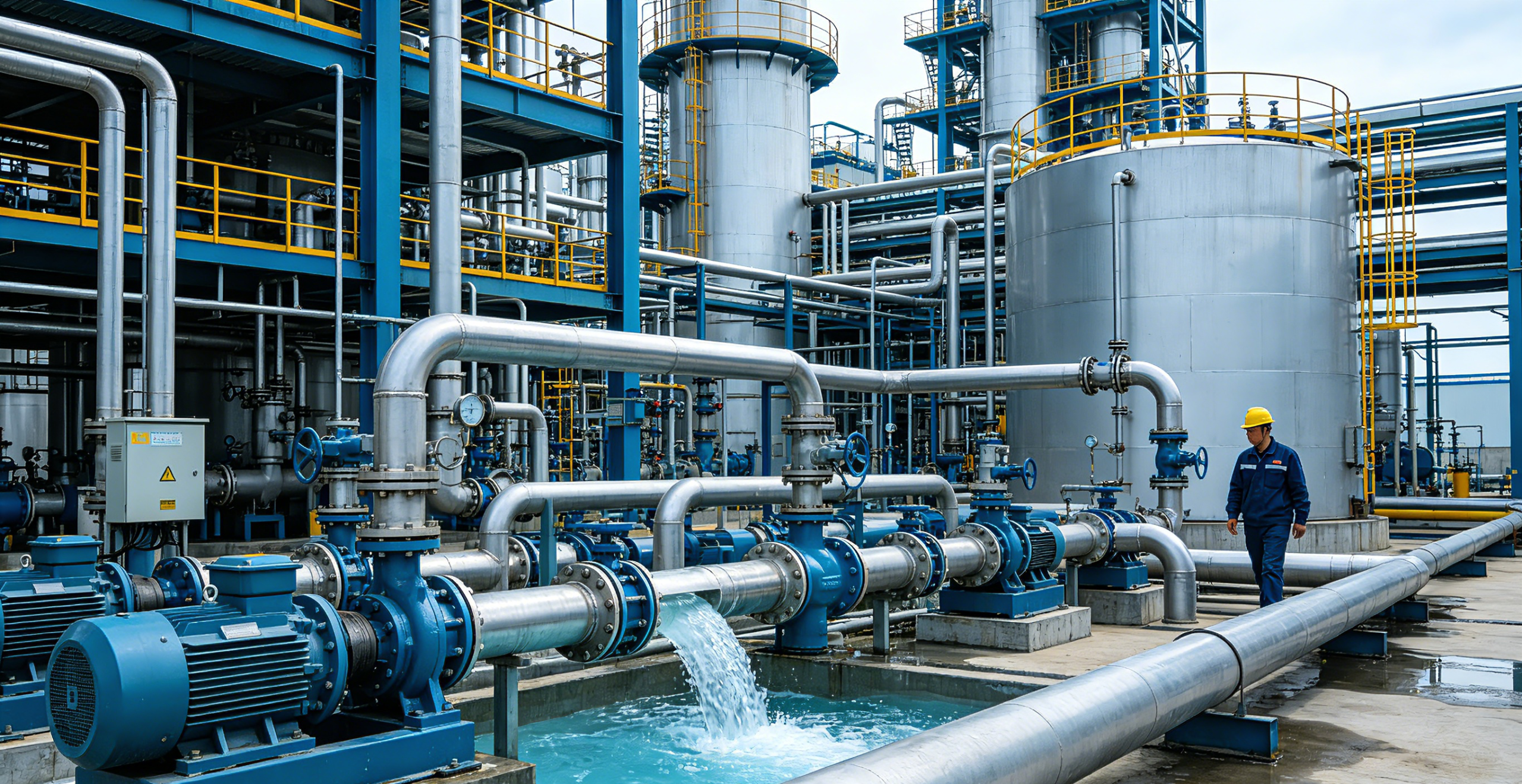

FOKARCI GY03 for Ethylene Glycol Transfer

FOKARCI GY03 Pump for Engine Cleaning

FOKARCI GY03 Sealless Pump for Cutting Fluid Transfer in Mechanical Manufacturing/Metalworking

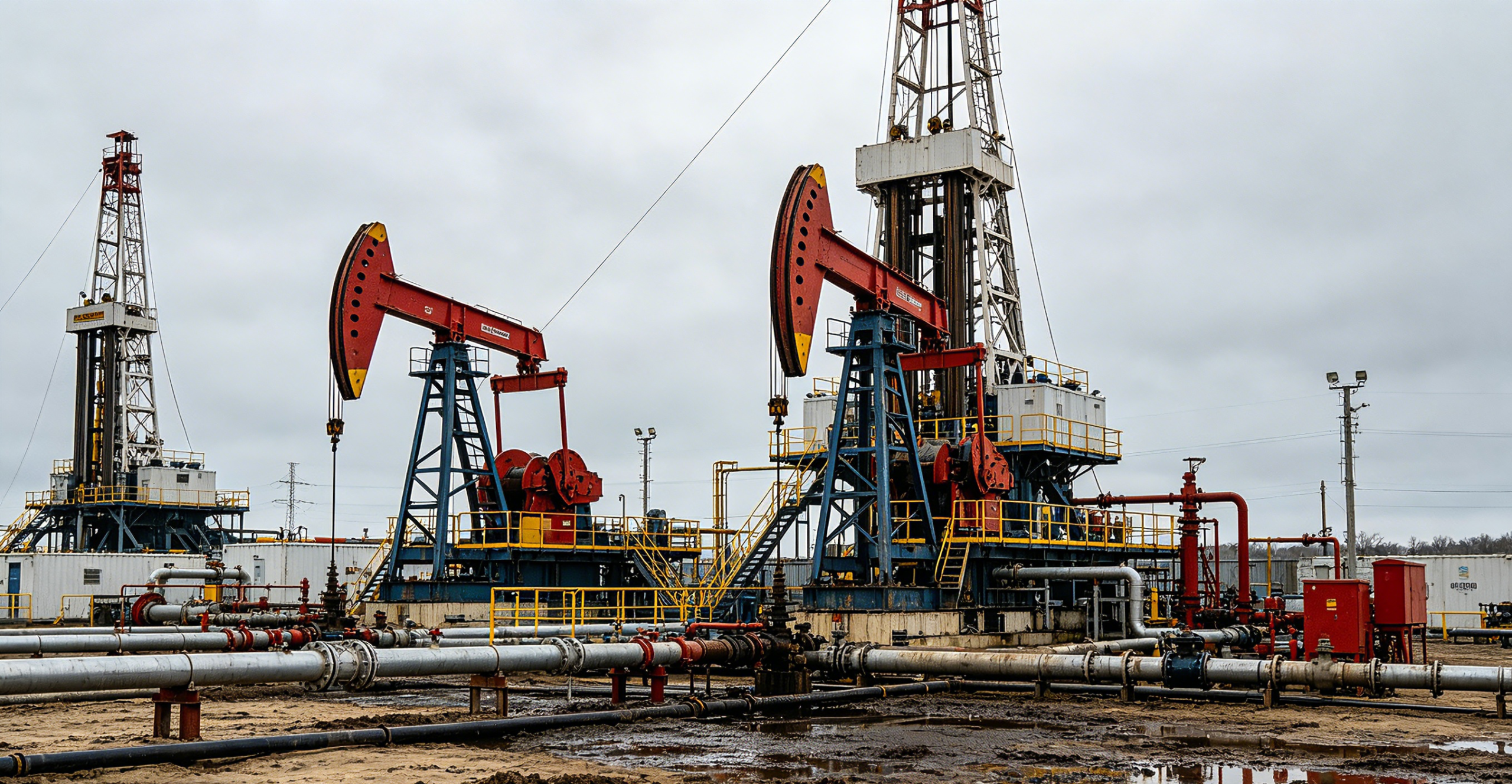

FOKARCI GY03 Mobile Chemical Pump (Oilfield/Drilling)

FOKARCI GY03 Laboratory Research Projects
