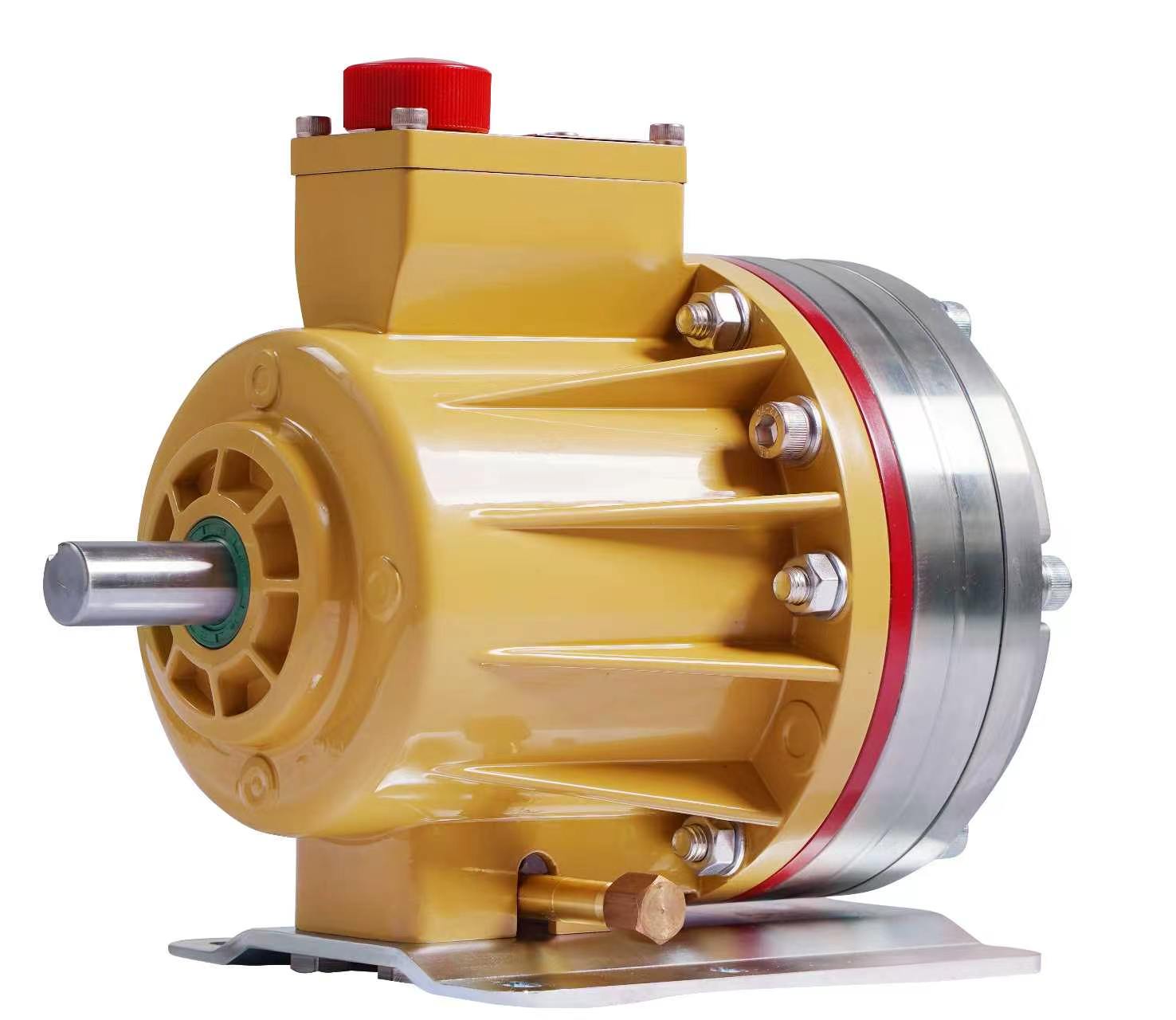

The FOKARCI GY10 diaphragm pump is suitable for a wide range of operating conditions:
1. High-pressure cutting fluid transfer: Used for supplying cutting fluids in stainless steel processing and deep-hole drilling applications.
2. Circulatory transfer of pressurized superheated water within steam generator loops.
3. Forced lubrication oil supply for compressors: Its seal-less structure allows it to withstand operating conditions involving lubrication oil contaminated with metal dust, ensuring stable and trouble-free operation.
4. Transfer and precise metering of additives, chemical reagents, and polyurethane raw materials.
5. High-pressure cleaning operations.
6. Small-scale pressure-type spray drying towers.
Note: Our warehouse maintains a ready stock of wear parts and repair kits for the FOKARCI GY10 pump (including diaphragms, seals, and complete spare parts sets), ensuring controllable maintenance costs.

Technical Specifications:
1. Flow Rate Range: 0.09 – 30.2 L/min
2. Maximum Outlet Pressure: 100 kgf/cm²
3. Maximum Inlet Pressure: 17 kgf/cm²
4. Maximum Operating Temperature: For detailed information regarding proper model selection when operating temperatures range between 71°C and 121°C, please consult the factory.
5. Maximum Solid Particle Size: 500 μm
6. Inlet Port Size: 1-inch BSPT
7. Outlet Port Size: 3/4-inch BSPT
8. Shaft Diameter: 22.2 mm (7/8 inch)
9. Shaft Rotation Direction: Bi-directional
10. Bearings: Tapered roller bearings
11. Weight: Metal Pump Head: 22.5 kg; Non-metal Pump Head: 16.7 kg
12. Pump Head Material Options:

• 316L Stainless Steel
• 2205 / 2507 Duplex Stainless Steel
• PVDF
• Hastelloy C-276

13. Diaphragm Material Options:

• Fluorocarbon Rubber (FKM)
• PTFE (Teflon)

14. Valve Assembly Material Options:

• Hastelloy C-276
• 316L Stainless Steel
• 17-4 PH Stainless Steel
• 2205 / 2507 Duplex Stainless Steel

Application Cases:

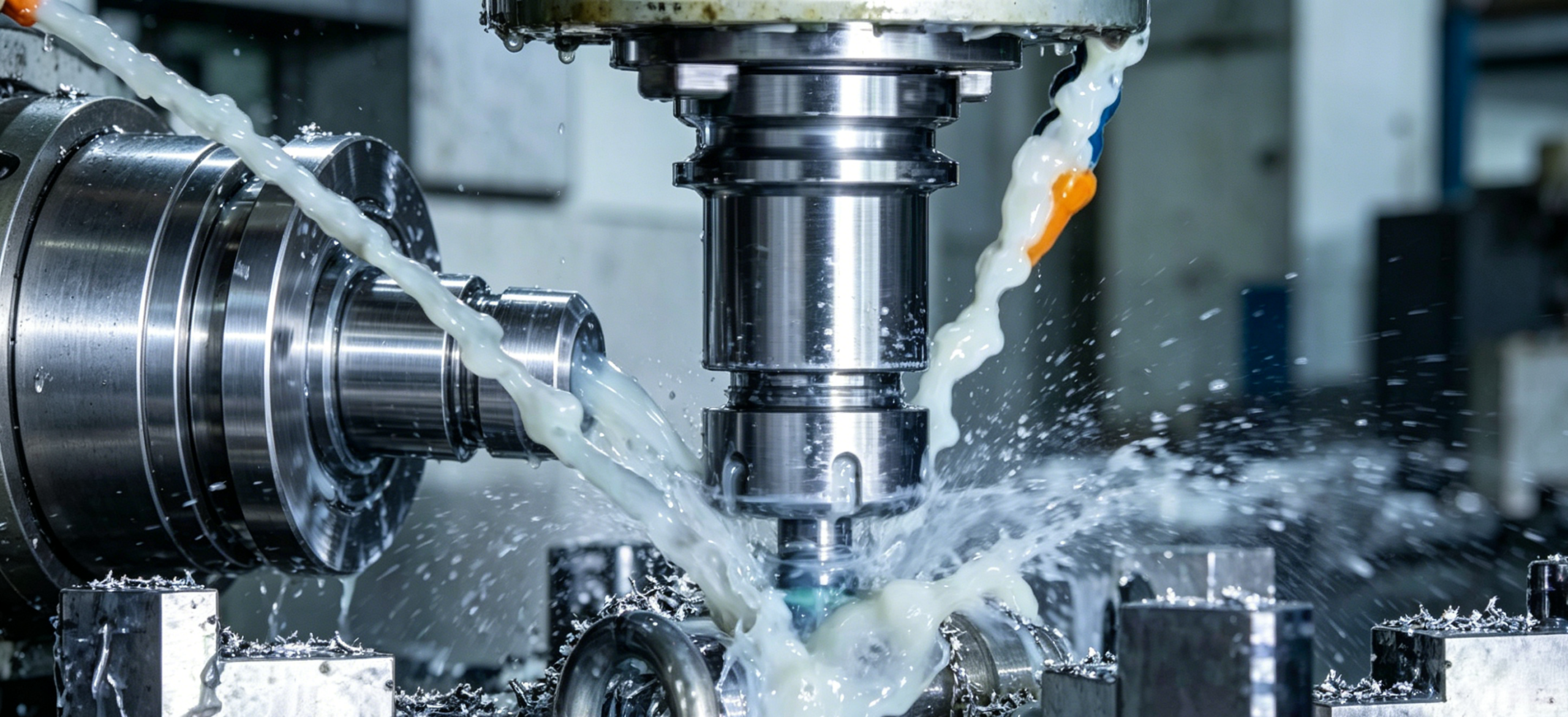

FOKARCI GY10 High-Pressure Pump — High-Pressure Cutting Fluid Delivery: Used for supplying cutting fluid in stainless steel processing and deep-hole drilling operations.

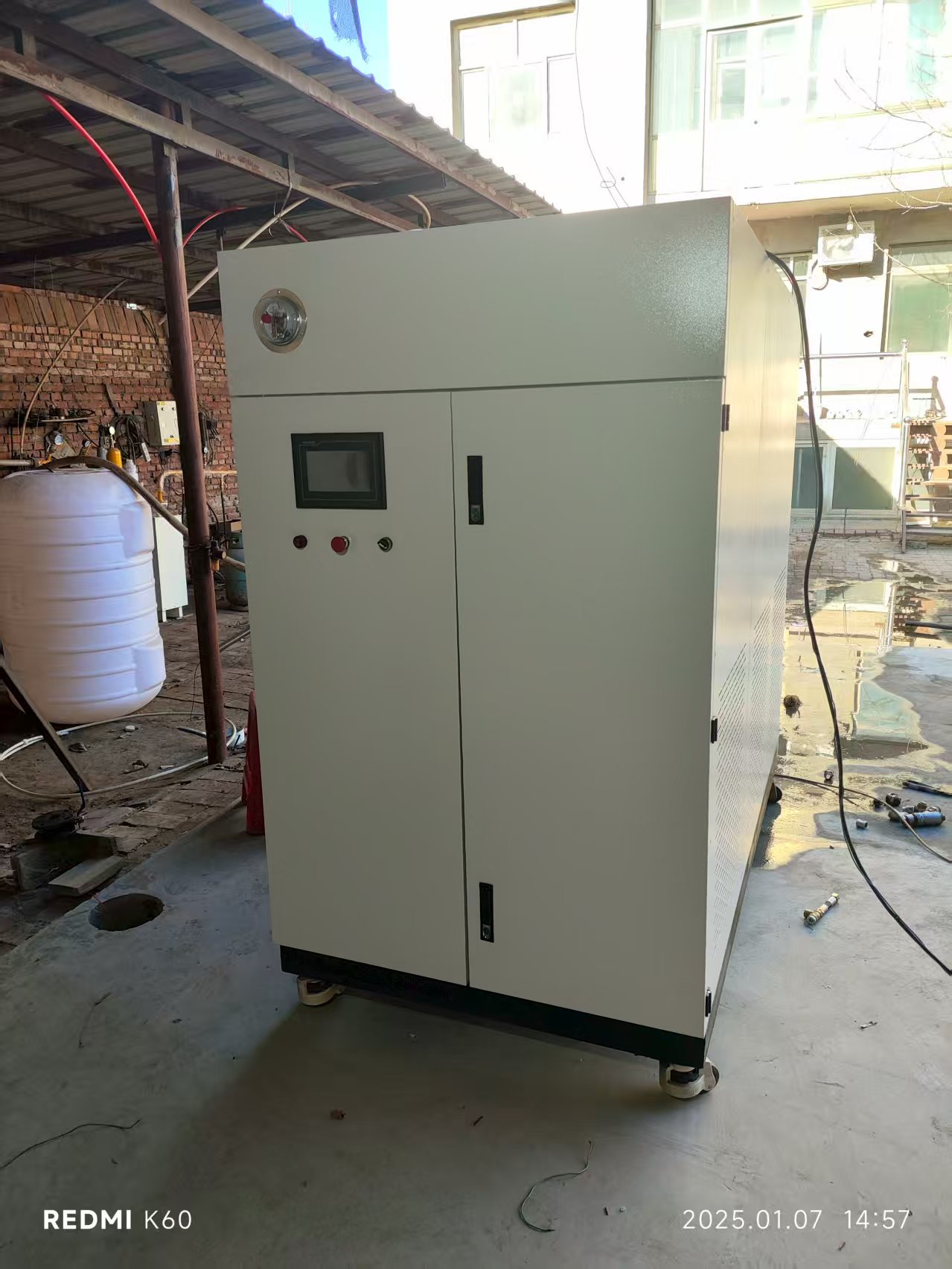

FOKARCI GY10 — Circulatory transport of pressurized superheated water within steam generator circuits.

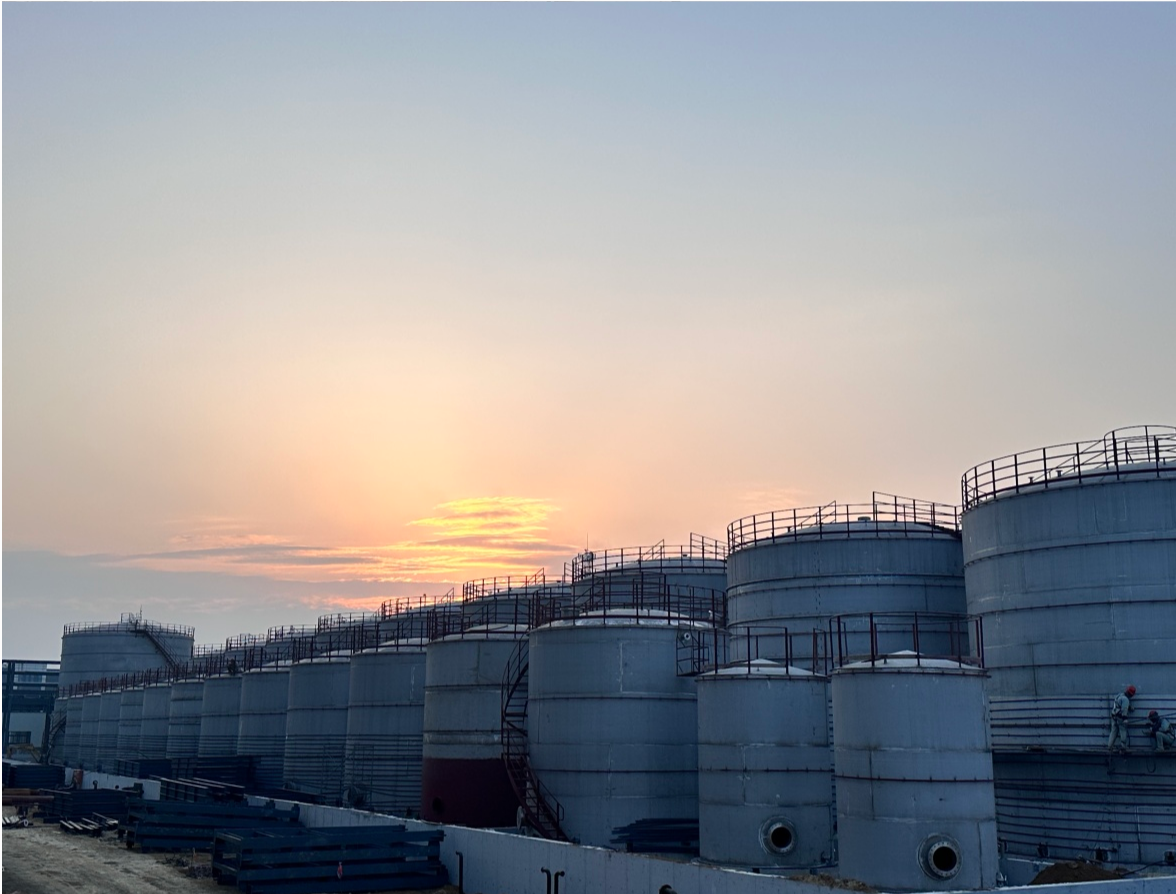

FOKARCI GY10 — Transport and precise metering of additives, chemical reagents, and polyurethane raw materials.

FOKARCI GY10 — High-pressure cleaning operations.

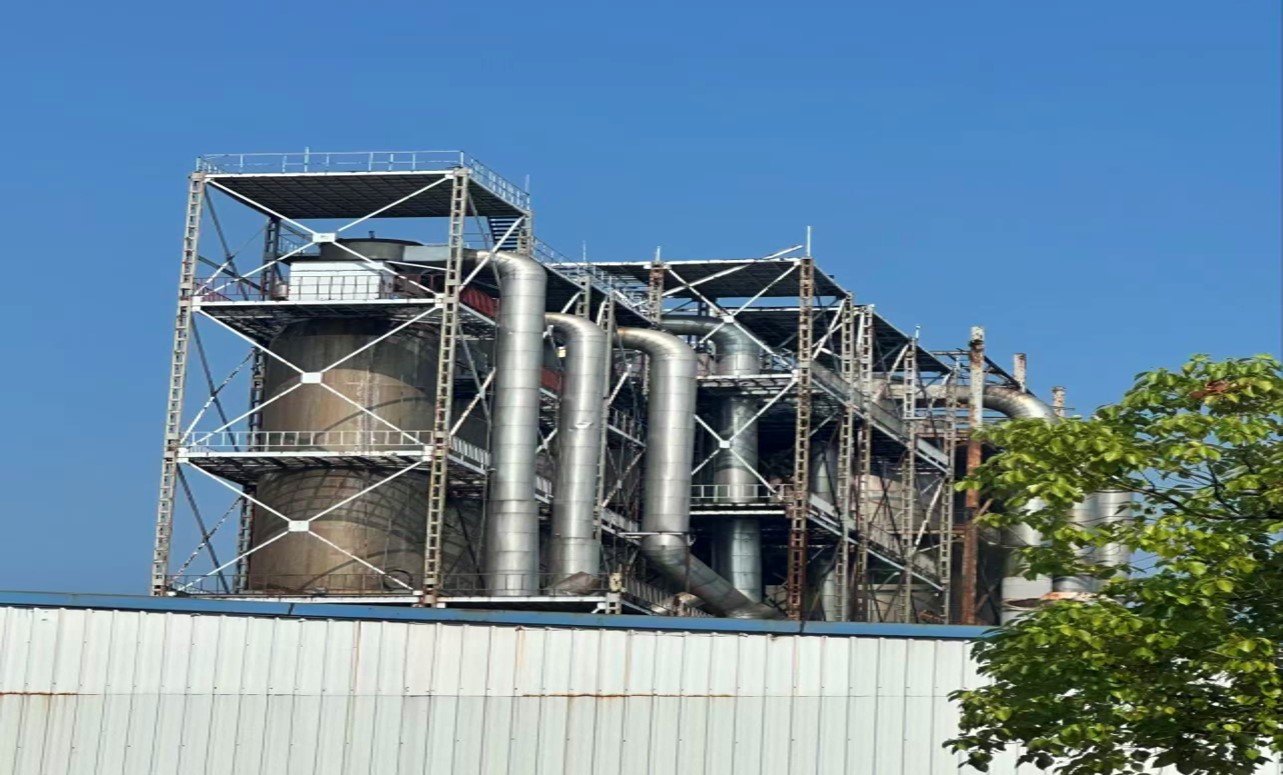

FOKARCI GY10 — Small-scale pressure-type spray drying towers.
