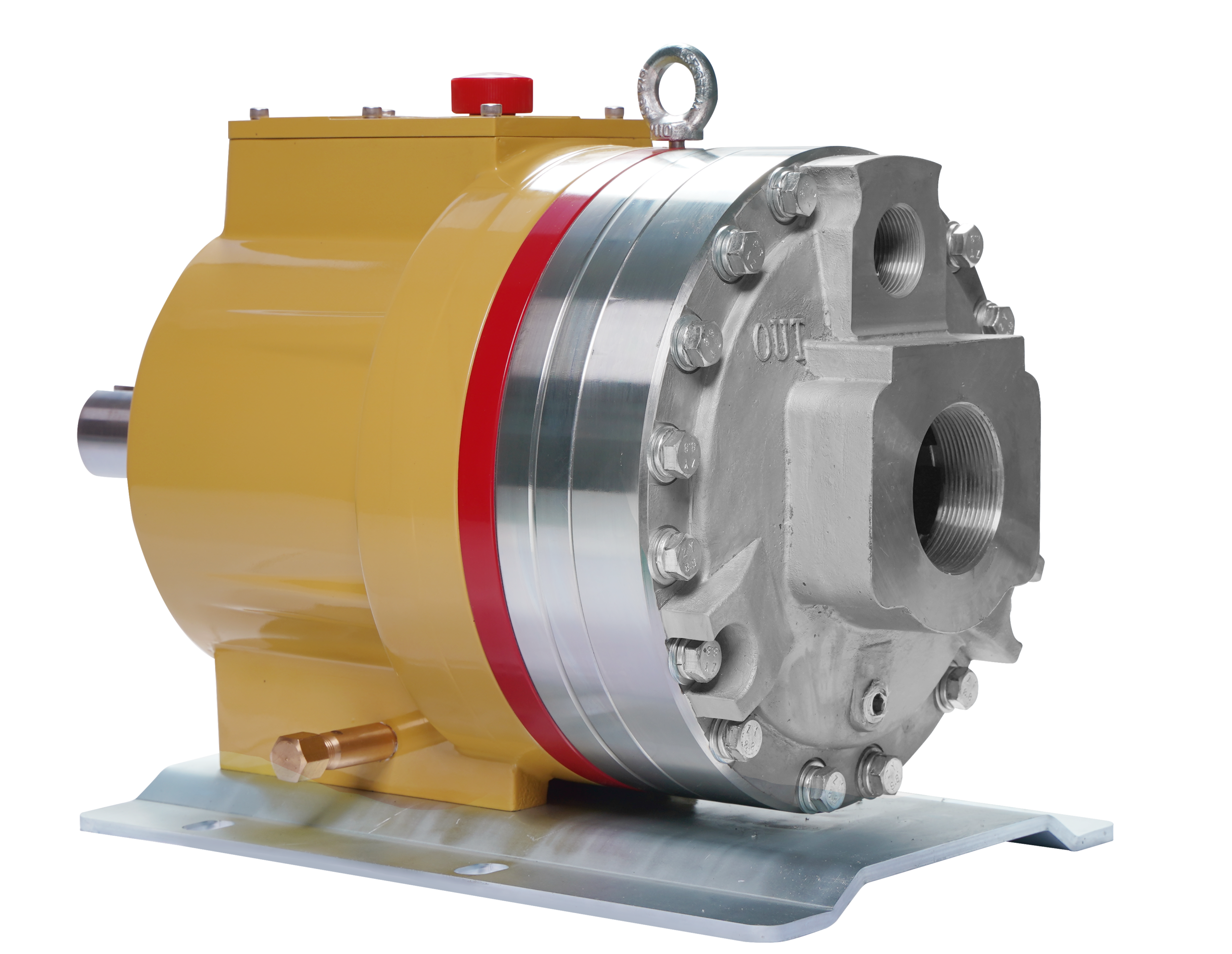

The FOKARCI model is available exclusively in a metal construction version. The GY35 series high-pressure pump is capable of conveying fluids with viscosities up to 6,000 cP; it demonstrates exceptional resistance to both corrosive media and fluids containing solid particles, while its pump body structure features an extremely high safety margin.

The FOKARCI GY35 diaphragm pump is suitable for a wide range of operating conditions:
1. Transport of superheated water within steam generation systems and high-pressure circuits.
2. Conveyance of high-sulfur heavy fuels and natural gas condensates utilized as fuel sources.
3. High-pressure circulating water cleaning for large-scale vehicles (buses, trucks, railway carriages, and aircraft).
4. Transport of chemical reagents, solvents, polymeric media, and raw material components for polyurethane foam production.
5. Treatment and reinjection of oilfield produced water.
6. Industrial wastewater treatment processes utilizing reverse osmosis and ultrafiltration.
7. Conveyance of abrasive and viscous media.
Note: Our warehouse maintains a ready stock of wear parts and repair kits for the FOKARCI GY35 pump (including diaphragms, seals, and complete spare parts sets), ensuring controllable maintenance costs.

Technical Specifications:
1. Flow Rate Range: 1.2 – 140 L/min
2. Max. Outlet Pressure: 103 kg
3. Max. Inlet Pressure: 17 kg
4. Max. Operating Temperature: For detailed information regarding proper model selection when operating temperatures range between 71°C and 121°C, please consult the factory.
5. Max. Solid Particle Size: 800 μm
6. Inlet Size: 2-1/2 inch BSPT
7. Outlet Size: 1-1/4 inch BSPT
8. Shaft Diameter: 50.8 mm
9. Shaft Rotation Direction: Bi-directional
10. Bearings: Tapered Roller Bearings
11. Weight: Metal Pump Head: 114 kg
12. Pump Head Material Options:

• 316L Stainless Steel
• 2205 / 2507 Duplex Stainless Steel
• PVDF
• Hastelloy C-276

13. Diaphragm Material Options:

• Fluororubber (FKM)
• Teflon (PTFE)

14. Valve Assembly Material Options:

• Hastelloy C-276
• 316L Stainless Steel
• 17-4 PH Stainless Steel
• 2205 / 2507 Duplex Stainless Steel

Application Cases:

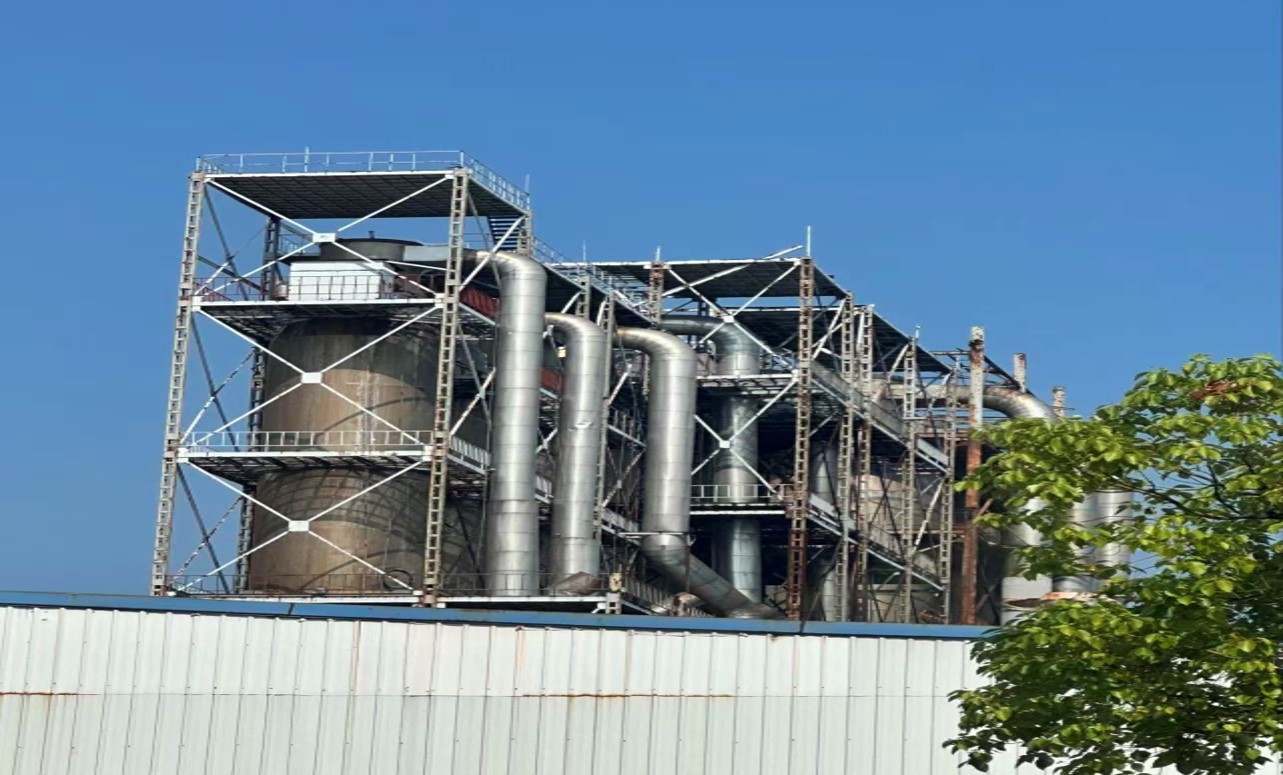

FOKARCI GY35 High-Pressure Pump: Application in Spray Drying Processes within the Dye Industry

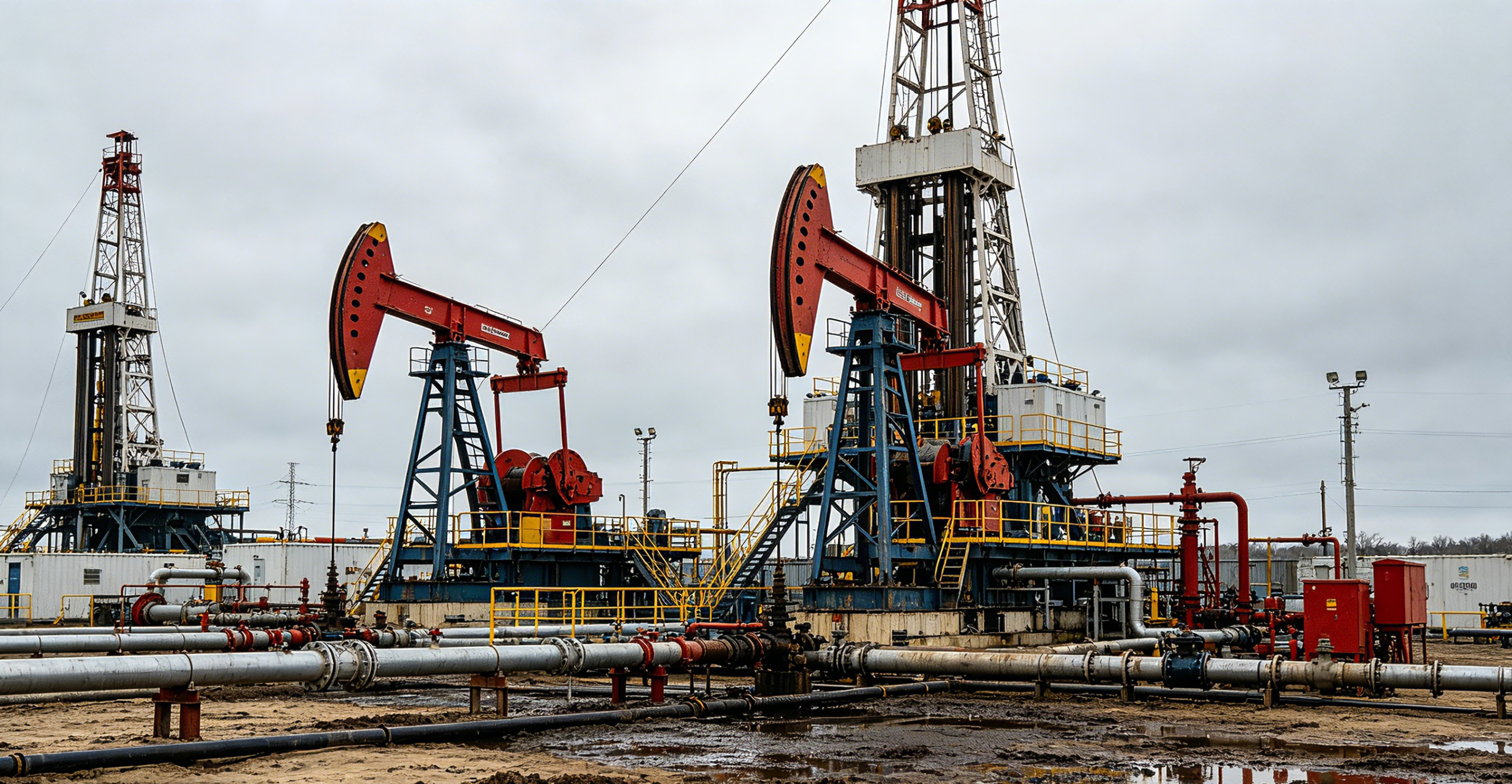

FOKARCI GY35: Polymer Injection for Enhanced Oil Recovery (EOR) Processes in Petroleum Extraction

FOKARCI GY35 High-Pressure Pump: Application in Industrial Container Cleaning

FOKARCI GY35 High-Pressure Pump: Application in Engine Cleaning

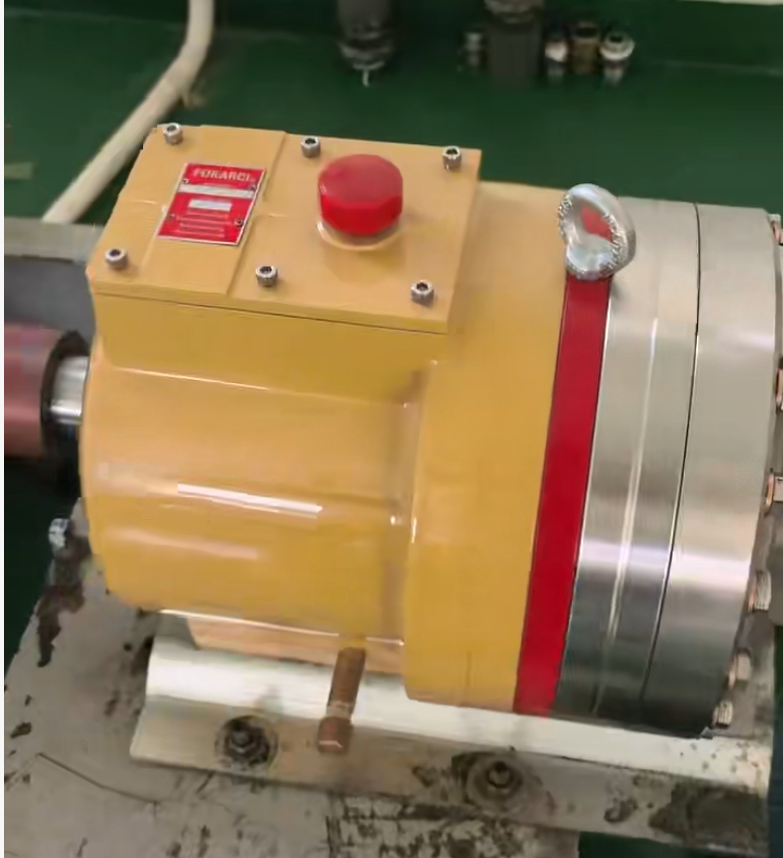

FOKARCI GY35 High-Pressure Pump: Triethylene Glycol (TEG) Transfer in Natural Gas Dehydration Processes

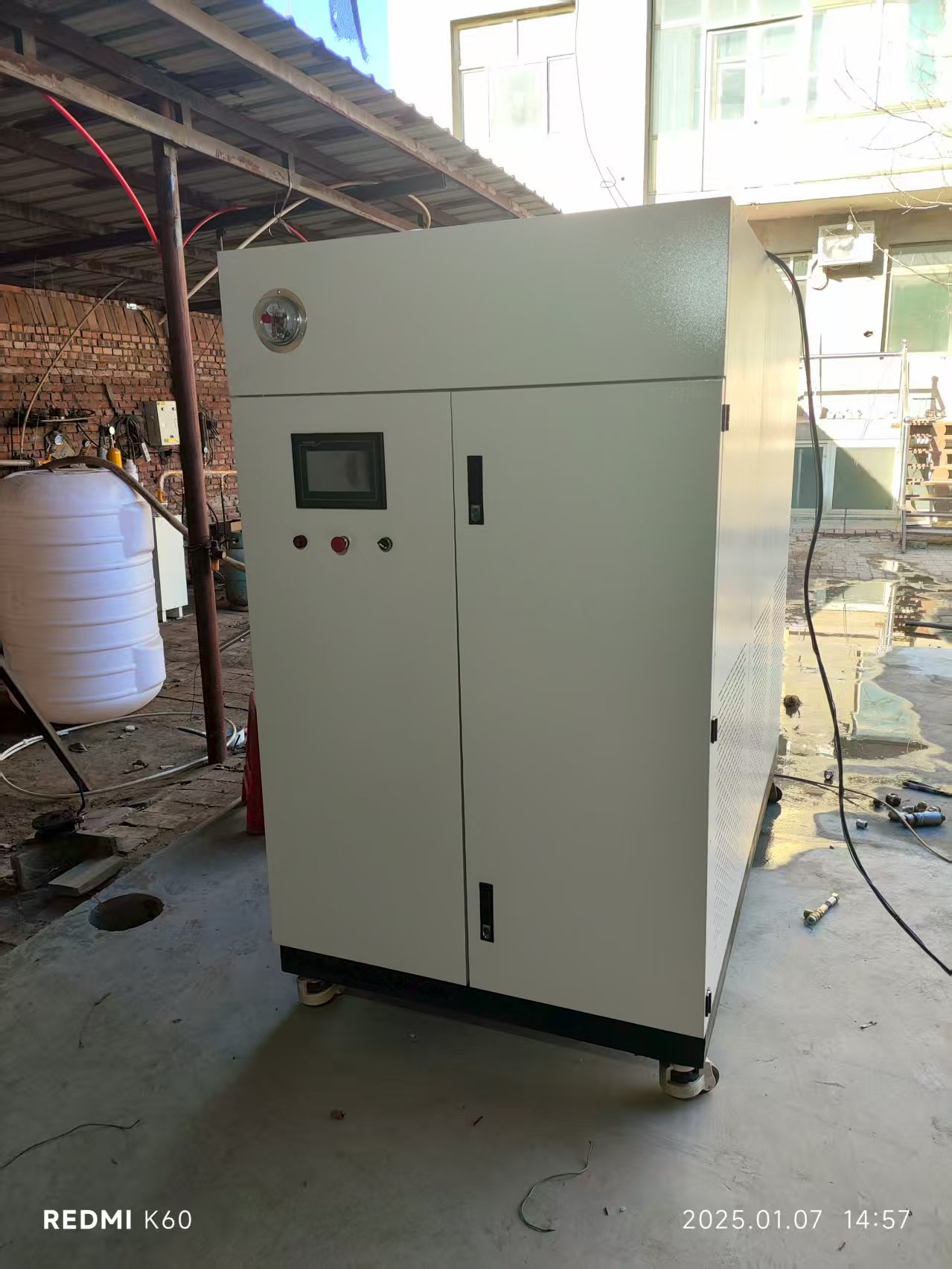

FOKARCI GY35: Circulatory Transfer of Pressurized Superheated Water in Steam Generator Circuits

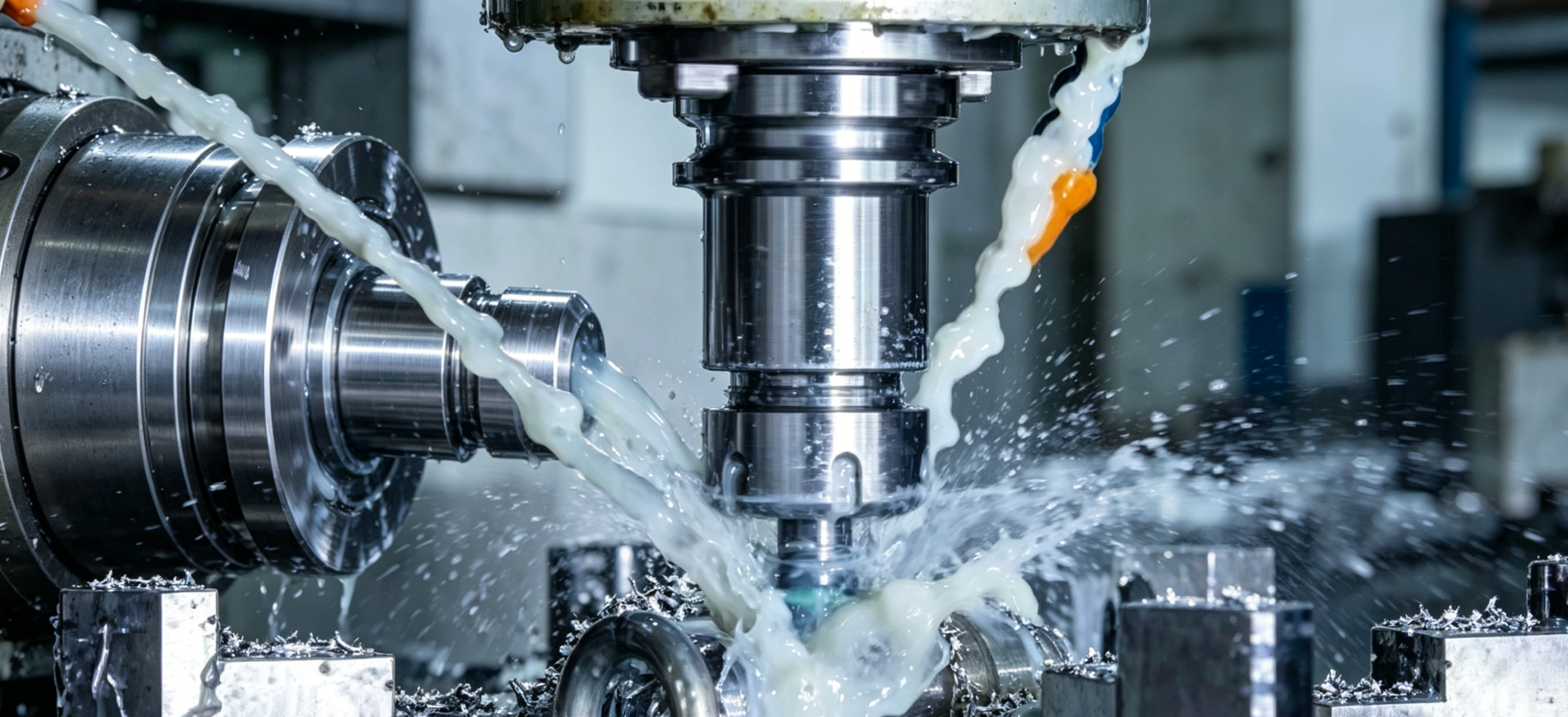

FOKARCI GY35 Seal-less Pump: Transfer of Cutting Fluids in Machinery Manufacturing and Metalworking

FOKARCI GY35: High-Pressure Cleaning Operations
