FOKARCI GY15

Short Description:

PRODUCT DETAIL
PRODUCT TAGS

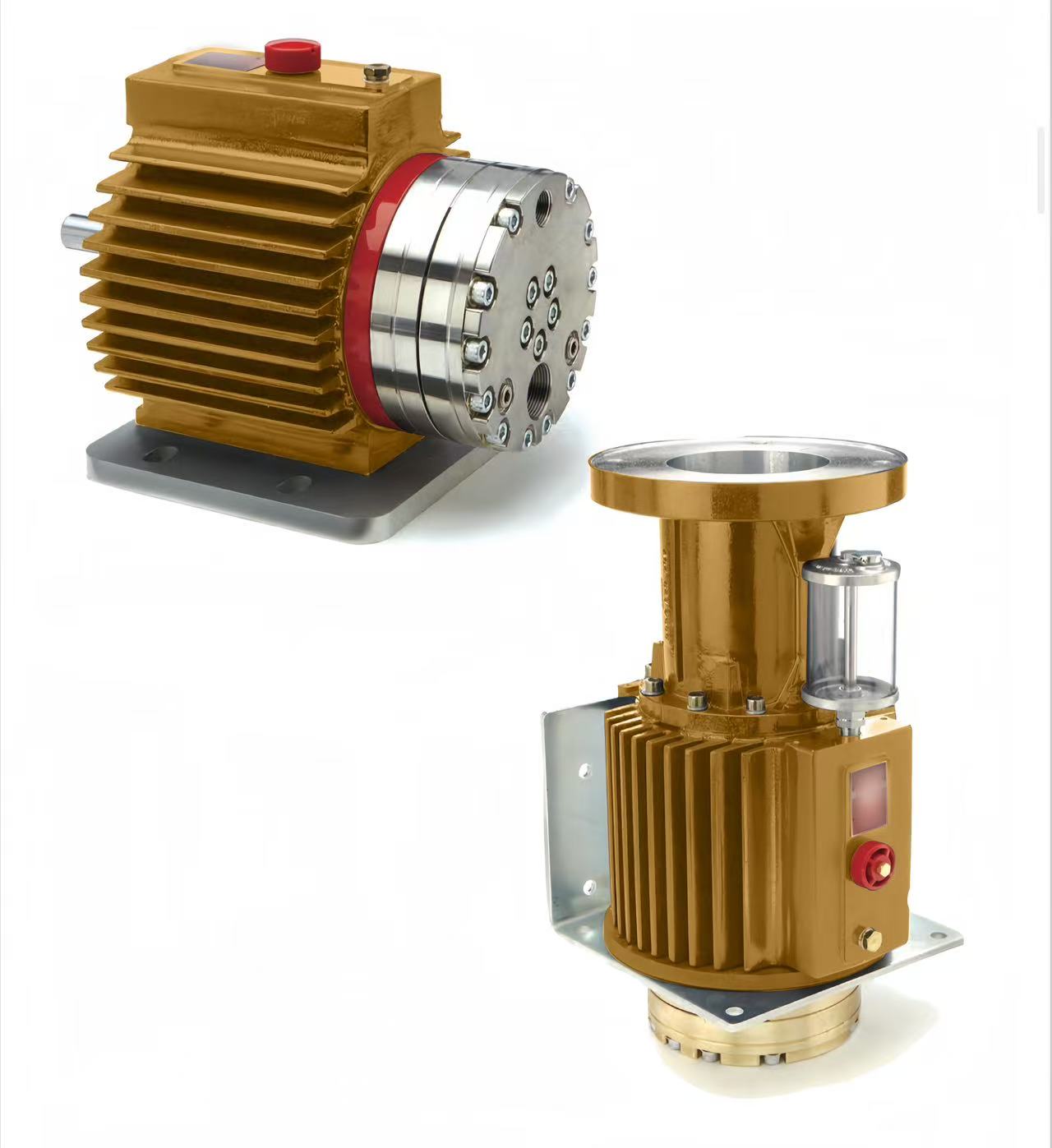

The FOKARCI Model GY15 high-pressure pump features a compact structure; its most distinctive characteristic is its ability to convey ultra-high-pressure fluids, reaching a maximum pressure of 170 kg. Its seal-less design enables it to handle a wide variety of “difficult media”—including saline solutions, circulating cleaning water, and natural gas condensates.

The FOKARCI GY15 diaphragm pump is suitable for a diverse range of operating conditions:

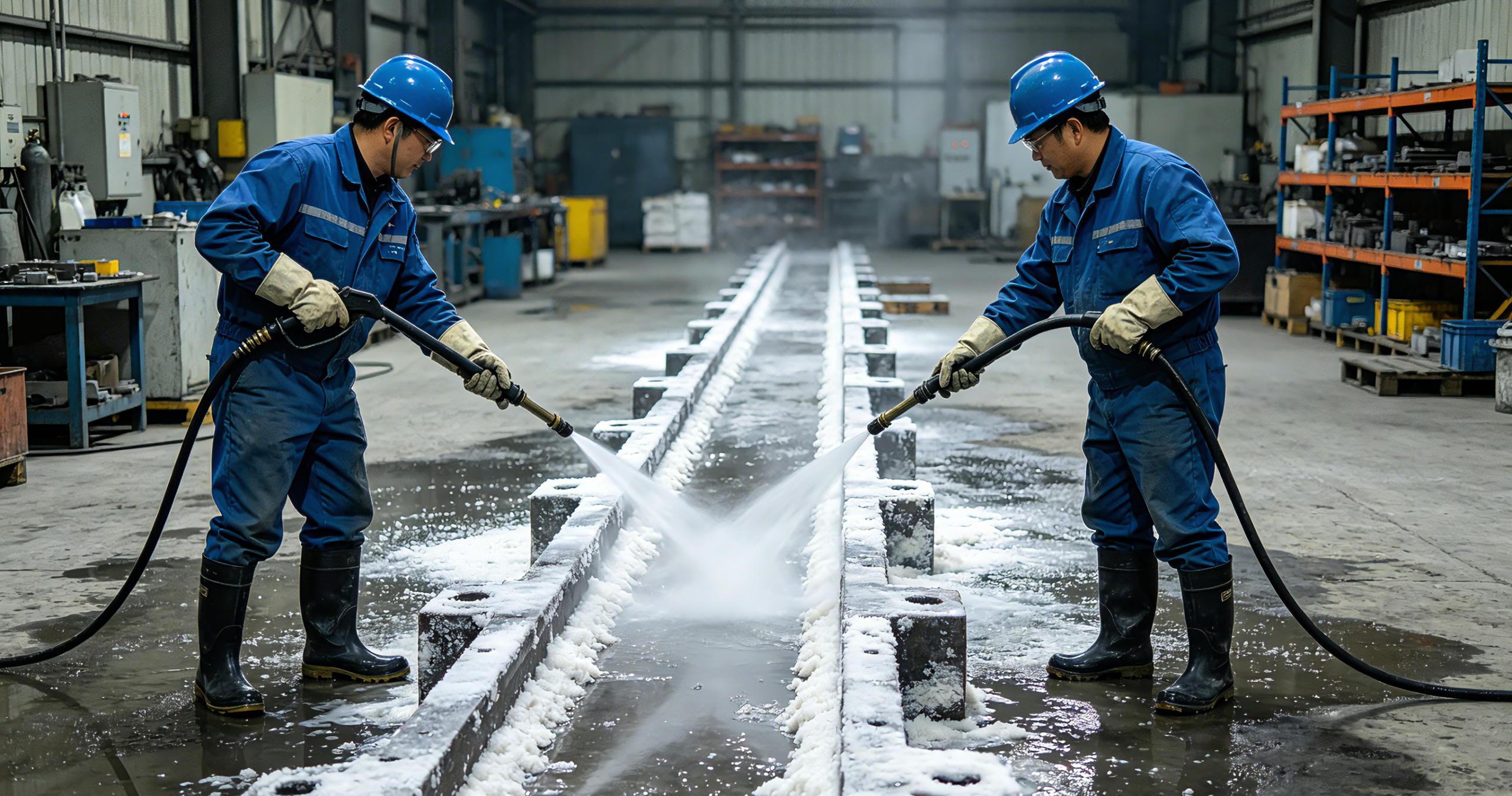

1. High-pressure cleaning (including the cleaning of salt cores in castings and the removal of mill scale).

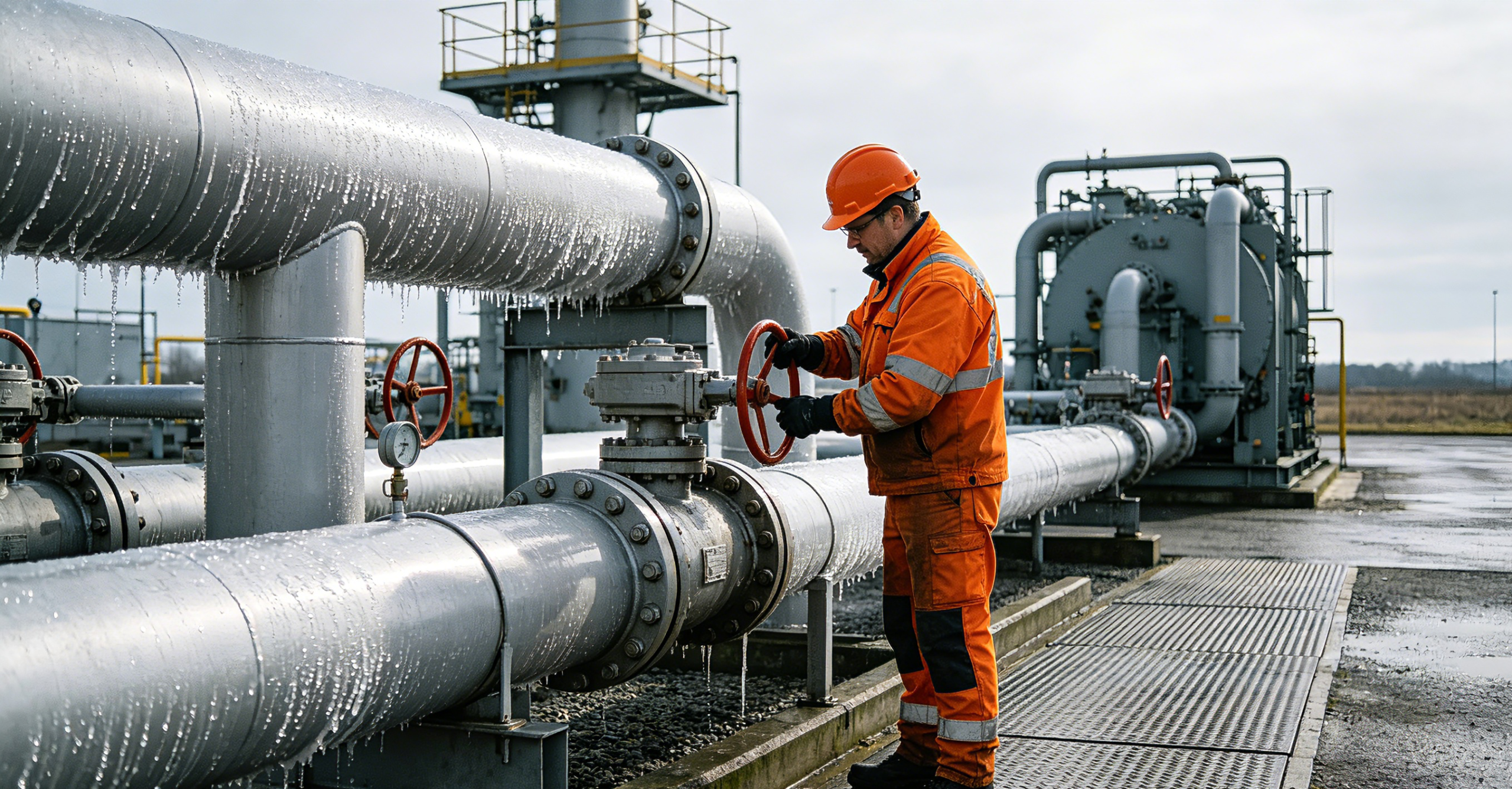

2. Conveyance of natural gas condensates.

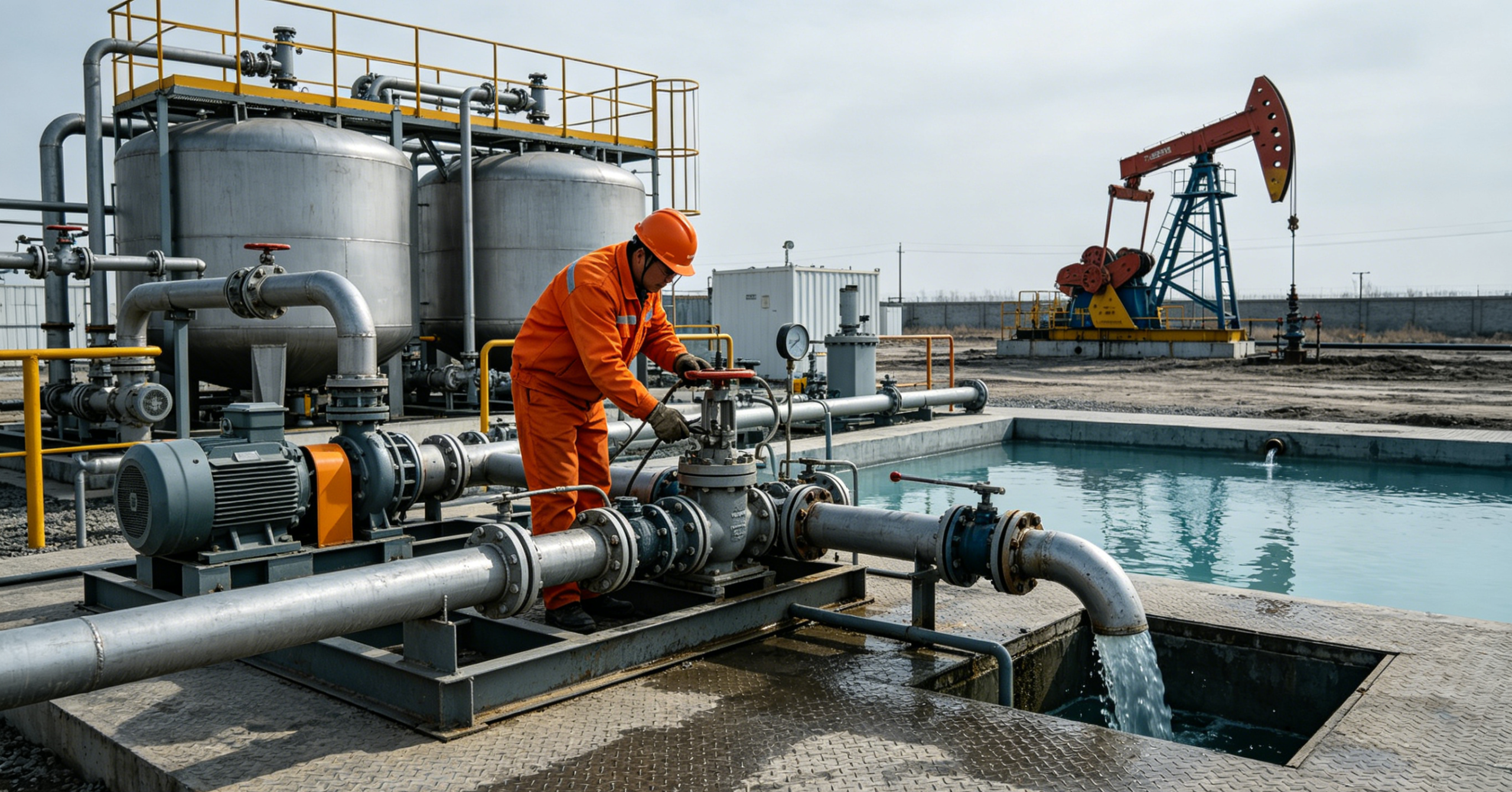

3. Reinjection/treatment of oilfield produced water at pressures exceeding 150 kg.
Note: Our warehouse maintains a ready stock of wear parts and repair kits for the FOKARCI GY15 pump (including diaphragms, seals, and complete spare parts sets), ensuring controllable maintenance costs.

Technical Specifications:
1. Flow Rate Range: 0.15 L/min – 50 L/min
2. Maximum Outlet Pressure: 170 kg
3. Maximum Inlet Pressure: 34 kg
4. Maximum Operating Temperature: For detailed information regarding proper model selection when operating temperatures range between 71°C and 121°C, please consult the factory.
5. Maximum Solid Particle Size: 500 μm
6. Inlet Port Size: 1-1/4 inch BSPT
7. Outlet Port Size: 3/4 inch BSPT
8. Shaft Diameter: 28.6 mm
9. Shaft Rotation Direction: Bi-directional
10. Bearings: Tapered roller bearings
11. Weight: Metal Pump Head: 67 kg
12. Pump Head Material Options:
