FOKARCI GY66

Short Description:

PRODUCT DETAIL
PRODUCT TAGS

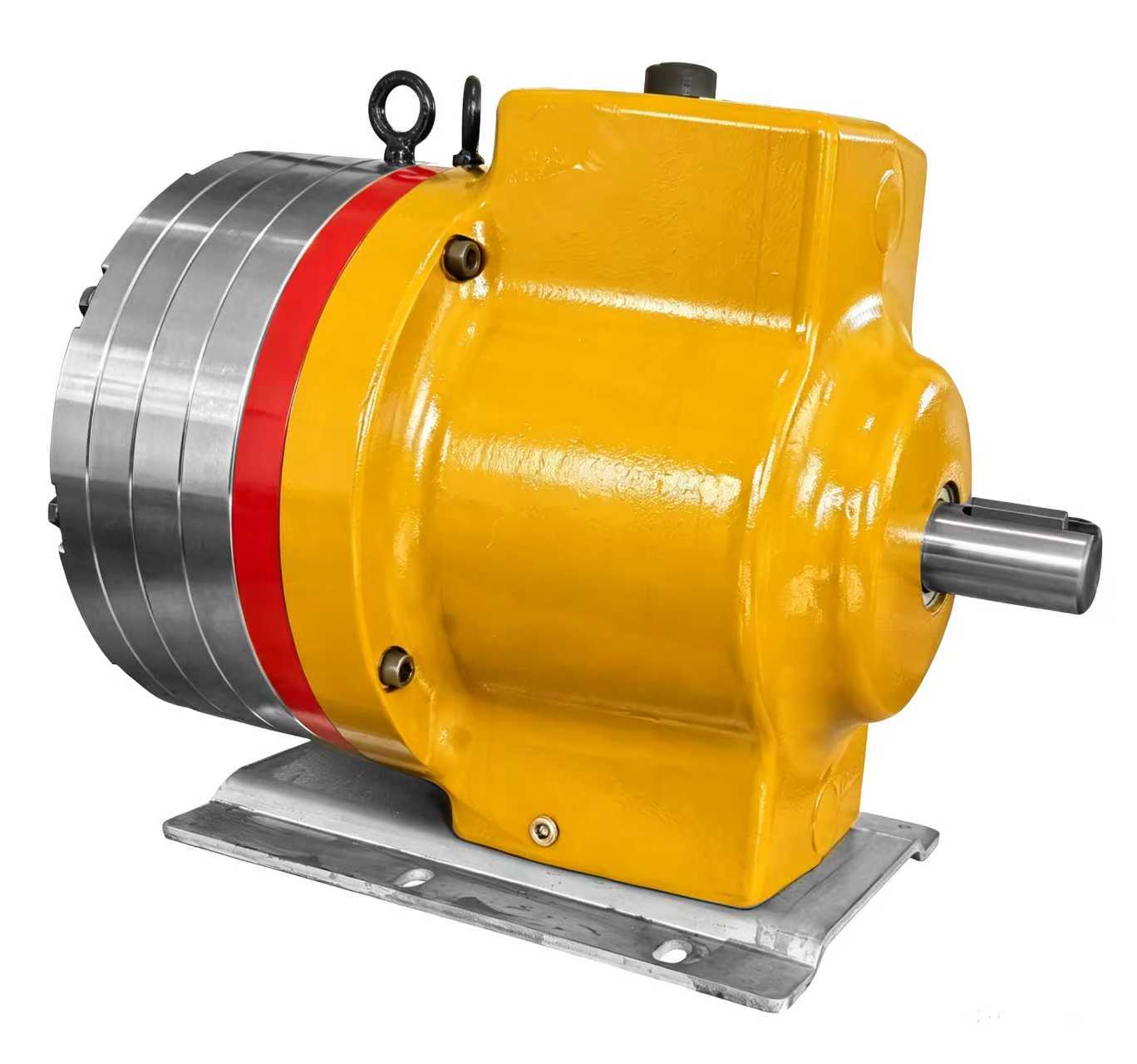

The FOKARCI Model GY66 leak-free pump represents the highest-flow model within the FOKARCI GY series. With a maximum discharge pressure of 69 kg, it is available in both metal and plastic material versions, significantly broadening its range of applicable scenarios.
Capable of achieving a maximum flow rate of 15 m³/h, this pump is adept at meeting both general fluid transfer requirements and the demands of high-precision metering and dosing applications. Compared to multi-stage centrifugal pumps, high-pressure screw pumps, and triplex plunger pumps, it features a compact structure and a fully sealed, shaft-seal-free design that guarantees zero leakage of the conveyed medium.

The FOKARCI GY66 diaphragm pump is suitable for a wide variety of operating conditions:
1. Transfer and metering of chemical reagents, methanol, alcohols, and solvents.
2. Hydraulic transfer of fracturing fluids.
3. High-pressure cleaning and lubricating oil circulation.
4. Transfer of fuels and natural gas condensates.
5. Transfer of abrasive slurries and solution-based cleaning prior to workpiece processing.
6. Material transfer and spray drying applications involving Lithium Iron Phosphate (LiFePO4).
Note: Our warehouse maintains a ready stock of wear parts and repair kits for the FOKARCI GY66 pump (including diaphragms, sealing rings, and complete spare parts sets), ensuring that maintenance costs remain manageable.

Technical Specifications:
1. Max. Flow Rate: 250 L/min
2. Max. Outlet Pressure: 69 kg
3. Max. Inlet Pressure: 17 kg
4. Max. Operating Temperature: For operating temperatures between 71°C and 121°C, please consult the factory for detailed information regarding proper model selection.
5. Max. Solid Particle Size: 800 μm
6. Inlet Size: 3-inch BSPT
7. Outlet Size: 1-1/2-inch BSPT
8. Shaft Diameter: 50.8 mm
9. Shaft Rotation Direction: Bi-directional
10. Bearings: Tapered Roller Bearings
11. Weight: Metal Pump Head: 226 kg
12. Pump Head Material Options:
